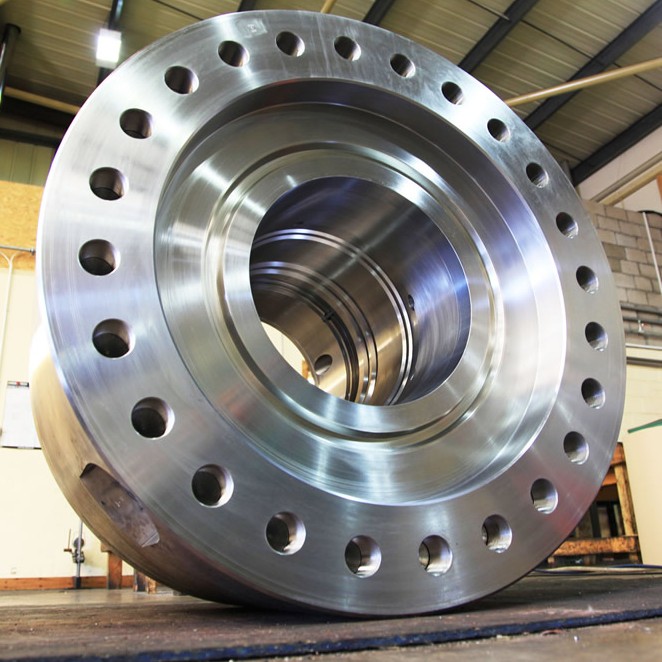

Completed-Part-5

MACHINERY

1 Off Giddings and Lewis RT1250.
15,000 KG’s weight limit
Available hours: 144 per week.

2 Off Doosan DB130C Horizontal Borer.
15,000 KG’s weight limit
Available hours: 288 per week.

1 Off Doosan DB130L Horizontal Borer.
15,000 KG’s weight limit
Available hours: 144 per week.

All the above machines have “Gun Drilling” capability, have I.T.S. Outfacing Bars and Contouring Heads for full internal profiling and back boring.

1 Off Mazak FH880 Horizontal Twin Pallet Machining Center
5 Axis:
1,300 mm X Travel with 1,100 mm Y Travel and 1,000 mm Z Travel with full C.N.C. Table
This machine is completed with its own Contouring Head.
Available hours: 100 per week.

1 Off Mazak Integrex E670H II
1,100 mm Diameter Swing with 4,000 mm Bed Length.This machine is completed with Sandvik Capto Tooling. Full Mill Turn technology allowing KSW to machine parts complete in one location.
Available hours: 144 per week.

1 Off Giddings & Lewis Vertical turning Lathe
1,400 mm Diameter Chuck with 1,500 mm Diameter Swing and 1,700 mm Height Capacity.
Available hours: 100 per week.

1 Off Daewoo Puma 600 CNC Lathe
1,000 mm  Diameter Swing with 1,500 mm Bed Length.This machine is completed with Sandvik Capto Tooling.
Available hours: 100 per week.

1 Off Daewoo Puma 700LM C.N.C. Lathe
1,000 mm Diameter Swing with 3,200 mm Bed Length. This machine is completed with Sandvik Capto and also incorporates Live Tooling.

Available hours: 100 per week.

3 Off Mazak Slant Turn 80 C.N.C. Lathe
1,100 mm Diameter Swing with 4,000 mm Bed Length. This machine is completed with Sandvik Capto Tooling.
Available hours: 432 per week.

1 Off Goratu Lathe
2,000 mm  Diameter Swing (1,500 mm Over Cross Slide) with 10,000 mm Bed Length and is complete with a full range of steadies. This machine also has two Sandvik Silent Boring Bars (160mm x 2400mm & 160mm x 2,900 mm long) which will allow us bore parts 4 400 mm in length.
Available hours: 144 per week.

5 Off Fronius ETR-S Cladding Stations
3,200 mm Height Capacity with 20,000KG weight limit
Available hours: 500 per week.

1 Off Fronius Compact Cladding Station
1,500 mm Vertical Travel and 1,500 KG’s weight limit
Available Hours: 100 per week

***From July 2015***
1 Off DEA Global Silver 20.40.20 Advantage CMM

2,ooo mm x 4,000mm x 2,000 mm measuring volume





1 Off Ajax Milling Machine With Digital read Out.

1 Off Harrison M400 Center Lathe.

1 Off Ruch Automatic Saw (10” Diameter Capacity).
